테일링 계수 Tailing factor, 대칭 계수 Symmetry factor 같은 것인가요? (종결)

기기분석을 하다보면 시스템적합성이 있다. 대칭계수는 영어로 무엇일까? Tailing factor? Symmetry factor? 꼬리끌림인자?

결론, 모두 같은 말이다.

USP, EP, JP, KP 공정서 확인.

The symmetry factor of a peak (also known as the asymmetry factor or tailing factor) is...

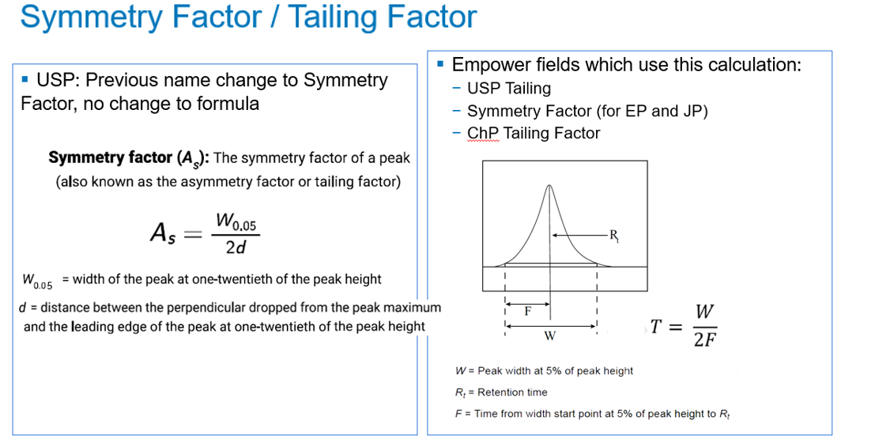

Tailing Factor will be called Symmetry Factor. There is no change to the calculation, and Empower currently reports USP Tailing.



USP

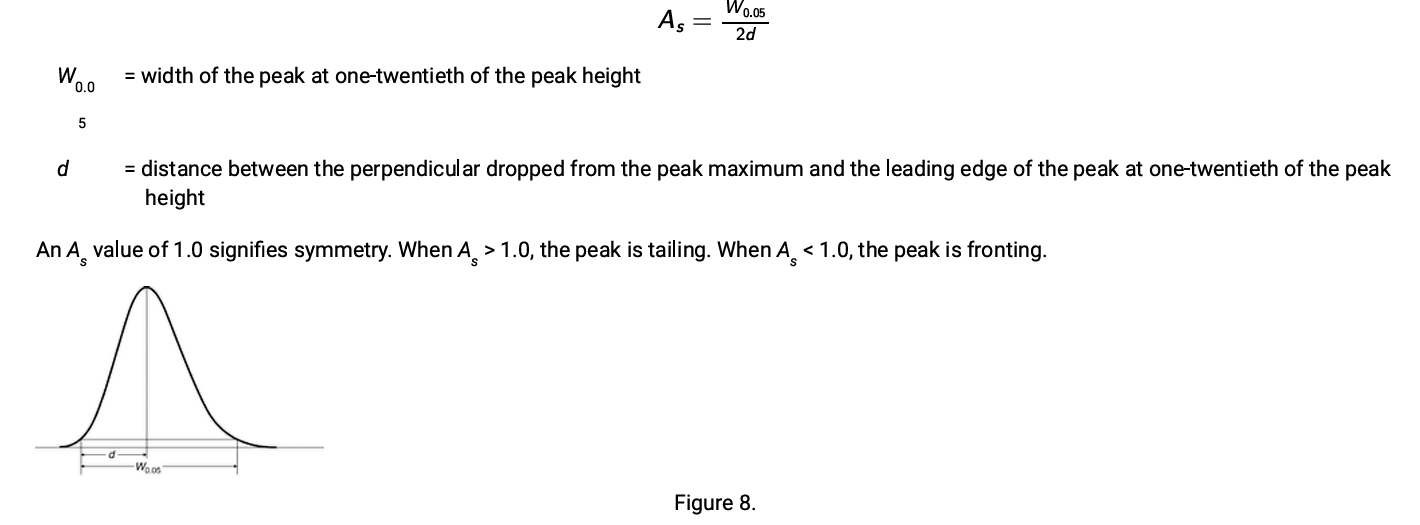

Symmetry factor (A ): The symmetry factor of a peak (also known as the asymmetry factor or tailing factor) ( S Figure 8) is calculated using OFFICIAL the following equation:



EP

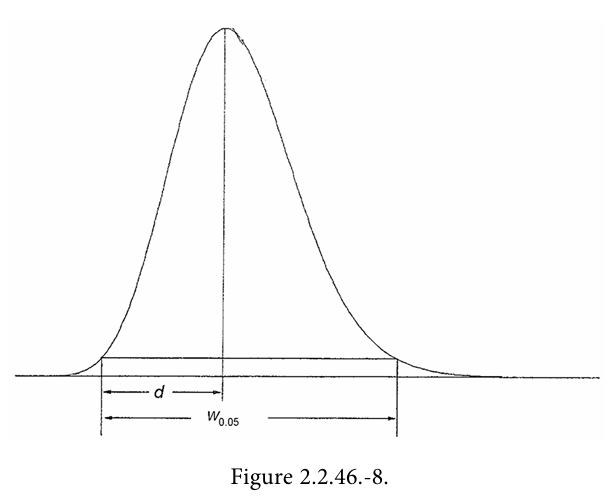

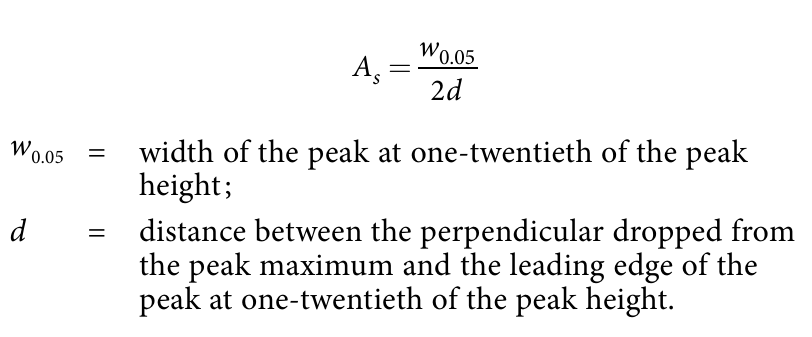

Symmetry factor (As ) The symmetry factor of a peak (also known as asymmetry factor or tailing factor) (Figure 2.2.46.-8) is calculated using the following equation:

KP JP

Symmetry Factor

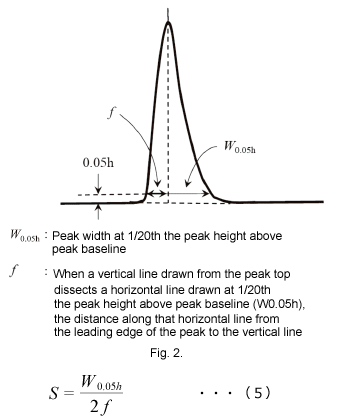

Symmetry factor (S, also called "tailing factor") is a coefficient that shows the degree of peak symmetry. It is represented in equation (5) based on the measurements shown in Fig. 2.





W0.05h : 피크의 기선에서부터 피크높이의 1/20의 높이에서의 피크폭

f : W0.05h의 피크폭을 피크의 정점에서 기록지의 가로축에 내린 수직선으로 2등분할 때의 피크의 올라가는 쪽의 거리.

결론, 같다.
